Epoxy Injection Repair
Epoxy injection services in Mansfield, TX for structural crack repair in concrete beams, columns, walls, and slabs. This technique restores structural integrity by filling cracks with high-strength epoxy resin.
Epoxy injection repair services provide Mansfield, TX property owners with advanced structural concrete restoration capabilities that restore strength and integrity to damaged concrete structures. As Mansfield's infrastructure and commercial buildings age, the need for professional crack repair and structural reinforcement has become increasingly important. Our epoxy injection services utilize high-strength, low-viscosity epoxies that penetrate deep into concrete cracks, bonding fractured sections and restoring structural capacity.
The injection process begins with comprehensive crack evaluation to determine the appropriate epoxy system and injection method based on crack width, depth, and structural requirements. We employ both low-pressure and high-pressure injection techniques, selecting epoxies that cure to achieve compressive strengths exceeding 10,000 PSI. For commercial applications in Mansfield, we typically restore concrete to 90-100% of original strength, making repairs virtually invisible and structurally sound. Our crews are experienced in working within occupied facilities and coordinating with other construction trades.
Technical specifications for epoxy injection in North Texas consider the region's concrete mix designs and environmental conditions. Mansfield's concrete often contains various aggregates that affect epoxy penetration and bonding. We utilize epoxy systems formulated for cold weather application and rapid curing to minimize disruption. Quality control includes surface preparation verification, injection pressure monitoring, and post-repair testing to ensure structural integrity. Safety protocols include proper ventilation for epoxy fumes and personal protective equipment for all personnel.
Project applications include foundation repairs, structural column restoration, slab stabilization, and infrastructure rehabilitation throughout Mansfield commercial and municipal projects. We handle cracks ranging from hairline fractures to wide structural separations, providing solutions for both cosmetic and load-bearing repairs. Each project receives detailed assessment including crack mapping, structural analysis, and material selection for optimal performance.
Injection timelines vary based on crack complexity and project scope, typically ranging from hours for small repairs to several days for extensive structural work. We coordinate with project schedules and provide temporary shoring when necessary. Our material selection considers Mansfield's soil conditions and climate patterns, choosing systems that resist moisture intrusion and maintain flexibility. Environmental considerations include low-VOC formulations and proper containment during application.
Industry standards guide our injection operations, following ACI guidelines for concrete repair and manufacturer specifications for epoxy performance. We achieve injection depths up to 4 inches and maintain material properties that exceed original concrete specifications. Our warranty programs cover material performance and workmanship, providing clients with confidence in their repair investment. Client education regarding crack monitoring and maintenance helps prevent future damage.
Common Applications for Epoxy Injection Repair
Foundation Crack Repair
Restoring structural integrity to Mansfield foundation walls and footings damaged by settlement or thermal stresses.
Column & Beam Repair
Strengthening cracked structural columns and beams in Mansfield commercial buildings to restore load-carrying capacity.
Slab Stabilization
Repairing settlement cracks in Mansfield concrete slabs to prevent further movement and surface damage.
Retaining Wall Repair
Restoring cracked retaining walls in Mansfield to prevent soil erosion and maintain structural stability.
Bridge Structure Repair
Strengthening cracked bridge components in Mansfield infrastructure to maintain safety and serviceability.
Parking Garage Repair
Repairing structural cracks in Mansfield parking garages to prevent water intrusion and corrosion.
Project Timeline
Crack Assessment
Map crack locations, measure dimensions, and determine structural impact and repair approach
Surface Preparation
Clean crack surfaces, remove loose material, and prepare injection ports for epoxy application

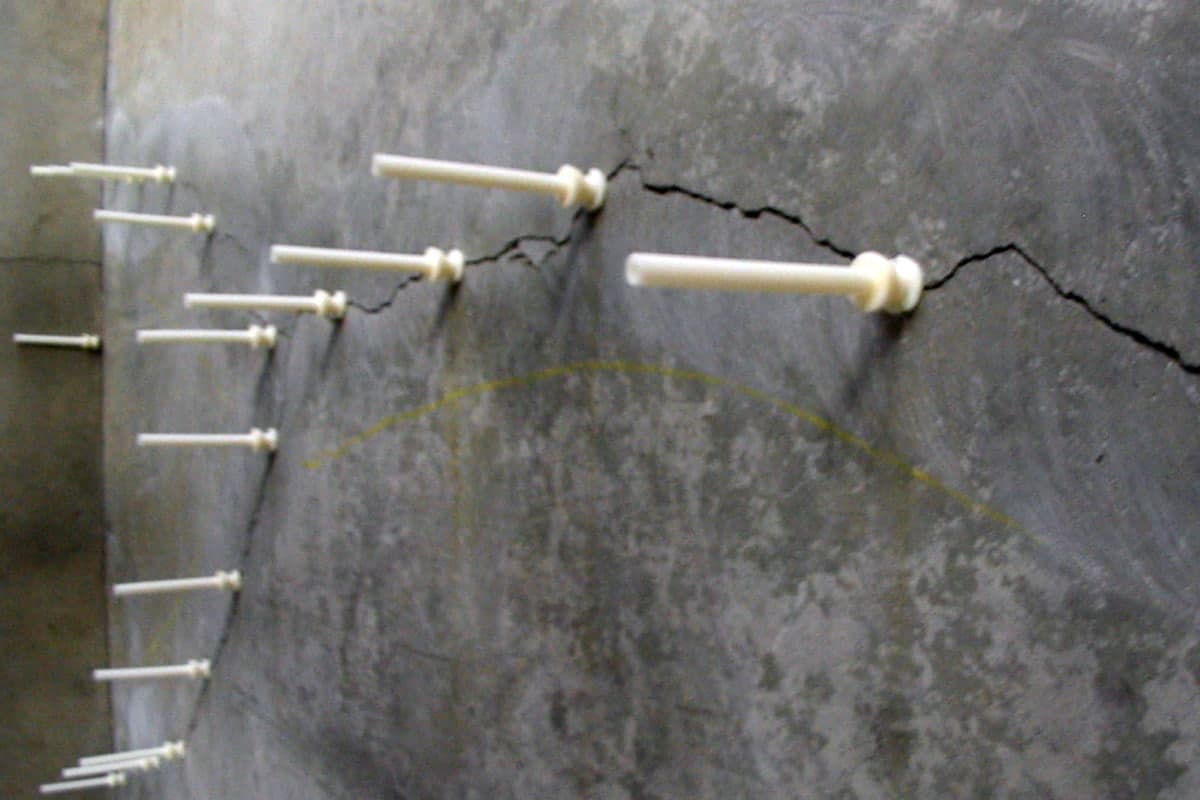

Injection Port Installation
Drill and install surface ports at strategic locations along the crack for controlled injection
Epoxy Injection
Inject epoxy resin under pressure, working from bottom to top to ensure complete filling
Curing Monitoring
Monitor epoxy curing process and adjust environmental conditions for optimal strength development
Port Removal
Remove injection ports and grind flush with concrete surface for clean appearance
Surface Finishing
Finish repaired areas to match surrounding concrete and ensure aesthetic continuity
Quality Testing
Test repair strength, verify crack sealing, and document completion for structural records
Technical Specifications
Epoxy Strength
8,000-12,000 PSI compressive strength, exceeding most concrete specifications
Crack Width Capacity
Effective for cracks up to 1/4 inch wide, with optimal performance on 1/16-1/8 inch cracks
Injection Pressure
Low-pressure (10-50 PSI) to high-pressure (200-500 PSI) systems based on crack characteristics
Penetration Depth
Up to 4 inches deep penetration for thorough structural repair
Curing Temperature
40°F to 90°F working range with accelerated curing options available
Viscosity Range
200-800 cps for optimal crack penetration and filling
Bond Strength
2,000-4,000 PSI concrete-to-epoxy bond strength
Environmental Resistance
Excellent resistance to moisture, chemicals, and temperature cycling
About This Service
Epoxy injection services in Mansfield, TX for structural crack repair in concrete beams, columns, walls, and slabs. This technique restores structural integrity by filling cracks with high-strength epoxy resin.
Frequently Asked Questions
What types of concrete cracks can be repaired with epoxy injection in Mansfield, TX?
Epoxy injection in Mansfield, TX can repair structural cracks, settlement cracks, shrinkage cracks, and freeze-thaw damage. The process works best for cracks up to 1/4 inch wide that penetrate through the concrete section. We assess each crack to determine if injection is appropriate or if other repair methods are needed.
How much does epoxy injection repair cost in Mansfield, TX?
Epoxy injection costs in Mansfield, TX range from $5-20 per linear foot depending on crack complexity, accessibility, and structural requirements. Simple crack repairs start at $5/ft, while complex structural repairs can reach $20/ft. Material costs are typically $2-8 per linear foot with labor adding the balance.
How strong is epoxy injection repair in Mansfield, TX?
Epoxy injection repairs in Mansfield, TX achieve compressive strengths of 8,000-12,000 PSI, often exceeding the original concrete strength. The repair restores 90-100% of structural integrity, making the concrete stronger at the repair location than surrounding areas. Full strength develops within 24-48 hours.
Can epoxy injection be done in cold weather in Mansfield, TX?
Epoxy injection in Mansfield, TX can be performed in cold weather using heated materials and application equipment. We use low-temperature curing epoxies that maintain performance down to 40°F. However, we recommend scheduling during moderate temperatures for optimal results and faster curing.
How long does epoxy injection take to cure in Mansfield, TX?
Epoxy injection curing in Mansfield, TX takes 4-24 hours for initial strength development, with full structural capacity achieved in 48-72 hours. Initial set occurs within 30-60 minutes, allowing for surface finishing. Final cure time depends on temperature, humidity, and epoxy formulation.
Is epoxy injection repair visible after completion in Mansfield, TX?
Epoxy injection repairs in Mansfield, TX are virtually invisible when properly executed. The epoxy fills the crack completely and cures to match the concrete color. Surface finishing can make repairs completely undetectable. Some applications use contrasting epoxies for inspection purposes.
What causes concrete cracks that require epoxy injection in Mansfield, TX?
Concrete cracks in Mansfield, TX are typically caused by settlement, thermal expansion/contraction, shrinkage during curing, freeze-thaw cycling, or structural overload. North Texas clay soils contribute to foundation movement, while temperature extremes create thermal stresses that lead to cracking.
Can epoxy injection repair leaking concrete in Mansfield, TX?
Epoxy injection is highly effective for repairing leaking concrete in Mansfield, TX by filling cracks and preventing water intrusion. The epoxy creates a waterproof barrier that stops leaks while restoring structural integrity. Surface sealing may be required for additional waterproofing protection.
How do you prepare concrete for epoxy injection in Mansfield, TX?
Concrete preparation for Mansfield, TX epoxy injection includes cleaning the crack, removing loose material, and creating injection ports. We use high-pressure water cleaning and vacuum systems to ensure contaminants are removed. The crack must be clean and dry for proper epoxy adhesion and penetration.
Do you provide warranties for epoxy injection repairs in Mansfield, TX?
We offer comprehensive warranties for Mansfield, TX epoxy injection repairs including material performance guarantees and workmanship warranties. Premium epoxy systems come with manufacturer warranties up to 10 years. Warranties cover cracking, delamination, and structural failure, provided the repair is properly maintained.
